Description

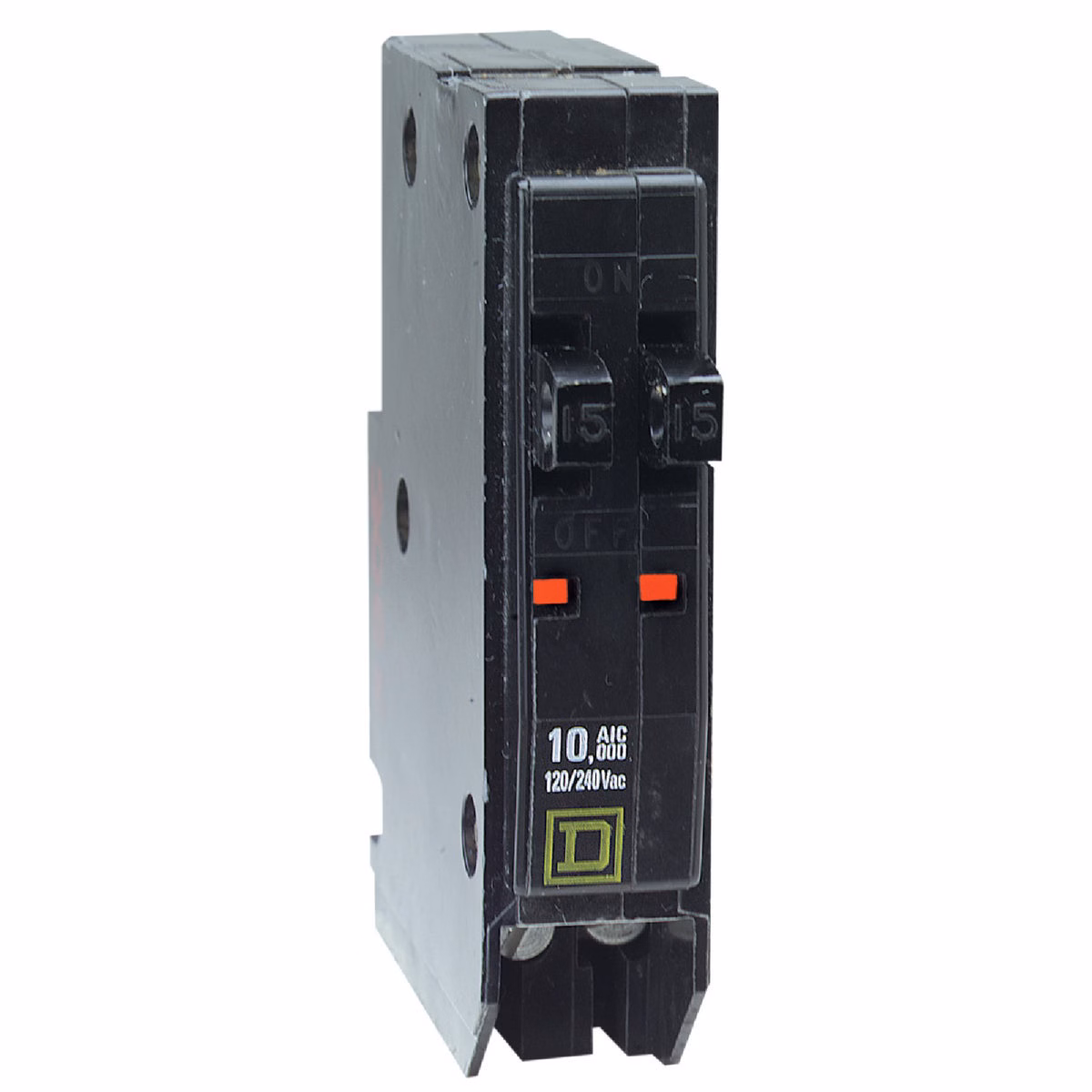

QO single-pole tandem circuit breaker. Ideal for overload and short-circuit protection of electrical systems. Offers 2 circuits in the space of 1. Compatible with QO load centers, CSED devices, and NQOD panel boards. Equipped with the exclusive Visi-Trip indicator. Only to be used in load centers built prior to 1967. When breaker is tripped, the handle snaps to a midpoint position and a highly visible, red indicator easily identifies the tripped breaker. ANSI (American National Standards Institute) certified and UL (Underwriter’s Laboratories) listed is rated for 120 volt/240 volt and 10,000 AIR. For use in load centers manufactured prior to 1967 and in modern QO Plug on Neutral style load centers.
| Amperage | 20/20 |
| Voltage | 120/240 |
| Number of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #12-8 AWG Al/#14-8 AWG Cu |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 0.75 |
| Brand | Square D |
| UPC | 00047569008986 |
| Product type | Circuit Breaker |
