Description

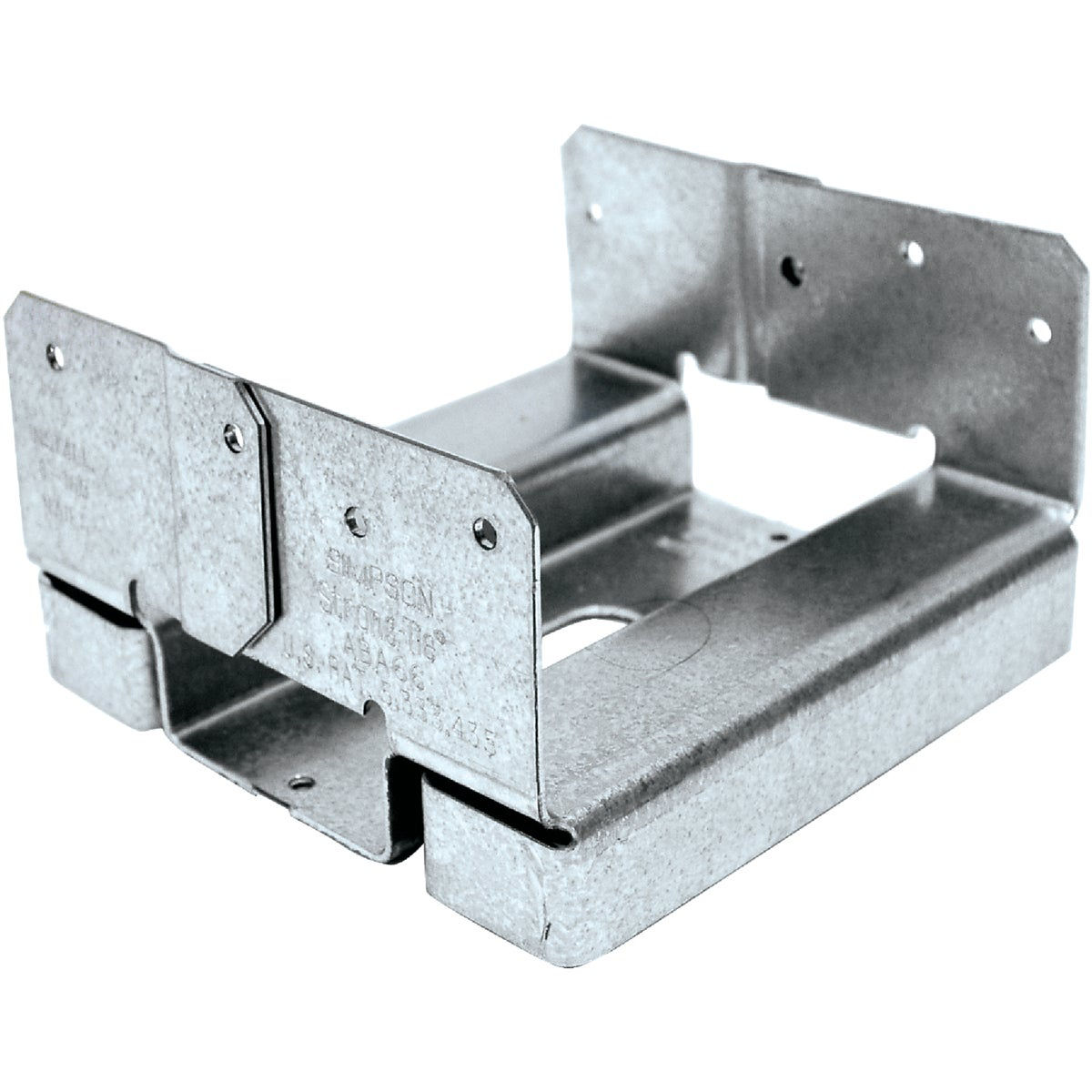

The ABA is an adjustable post base which offers moisture protection and finished hardware appearance. These post bases feature a 1" standoff height above concrete floors, code-required when supporting permanent structures that are exposed to the weather, or water splash, or in basements. They reduce the potential for decay at post and column ends. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). Place the post in the ABA and fasten using nails or Strong-Drive SD Connector screws. ZMAX galvanized coated steel.
| Material | Steel |
| Type | ABA Adjustable |
| Finish | Z-Max |
| Size | 6 In. x 6 In. |
| Gauge | 14 ga |
| Install With | 8-16d fasteners & 5/8 In. Anchor Dia |
| Dimensions | 5-1/2 In. W x 5-1/4 In. L x 3-1/8 In. H |
| Uplift | 720 Lb. |
| Download | 10665 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315671906 |
| Product type | Post Base |
